▊Method for selecting safety controller
Please follow the steps to select the suitable GC series products according to the purpose. | ||
 |  |  |
| Selection of main controller [required] | Selection of expansion unit [option] | Selection of bus gateway [option] |
|  |  |

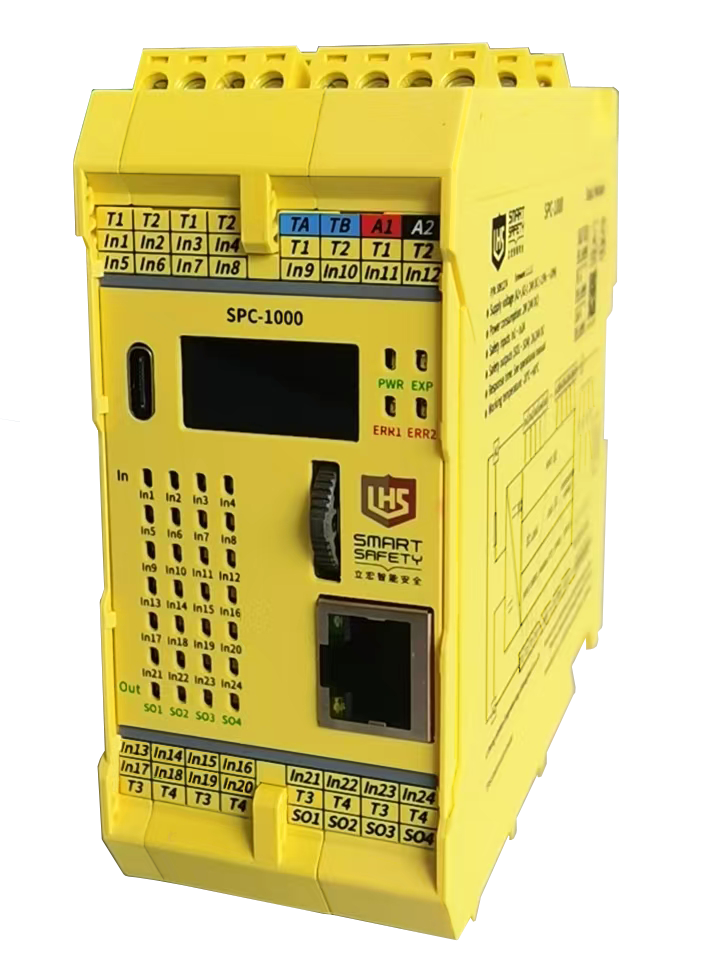

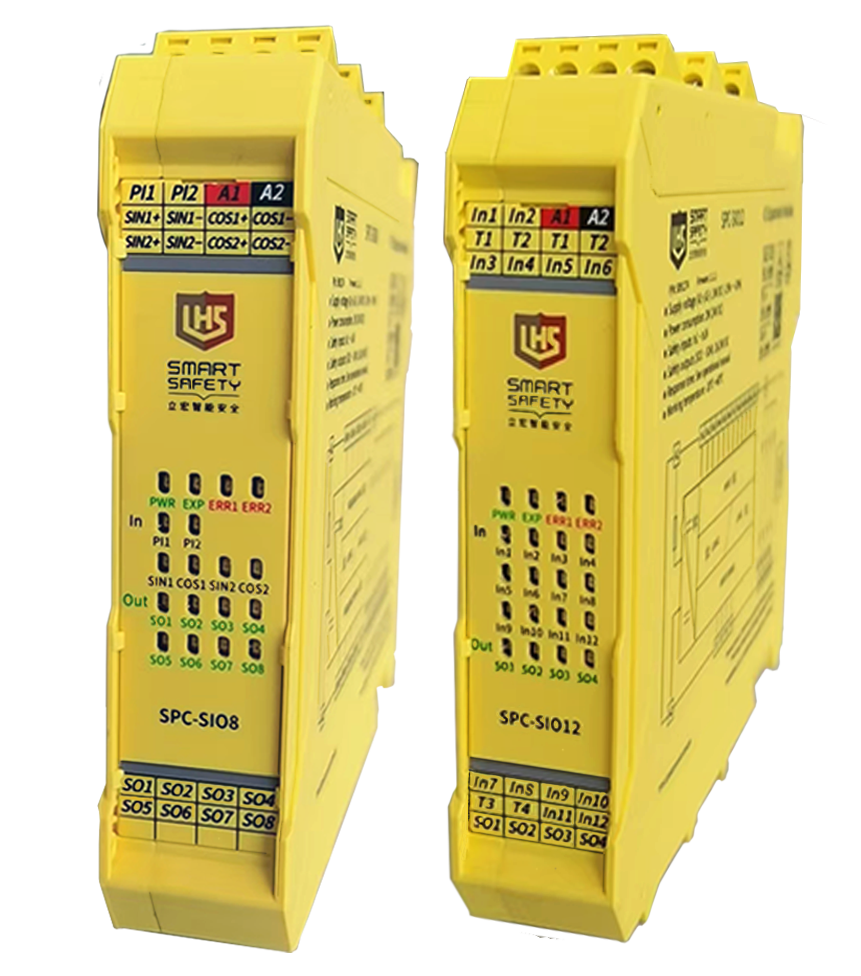

SPC-1000 | SPC-SIO8 SPC-SIO12 | SPC-WG |
| ▊ | Bus gateway |
| ? It is a bus-type gateway slave device. ? Used in conjunction with the safety control modules |
▊Attachment specification
product name | model | communication method |

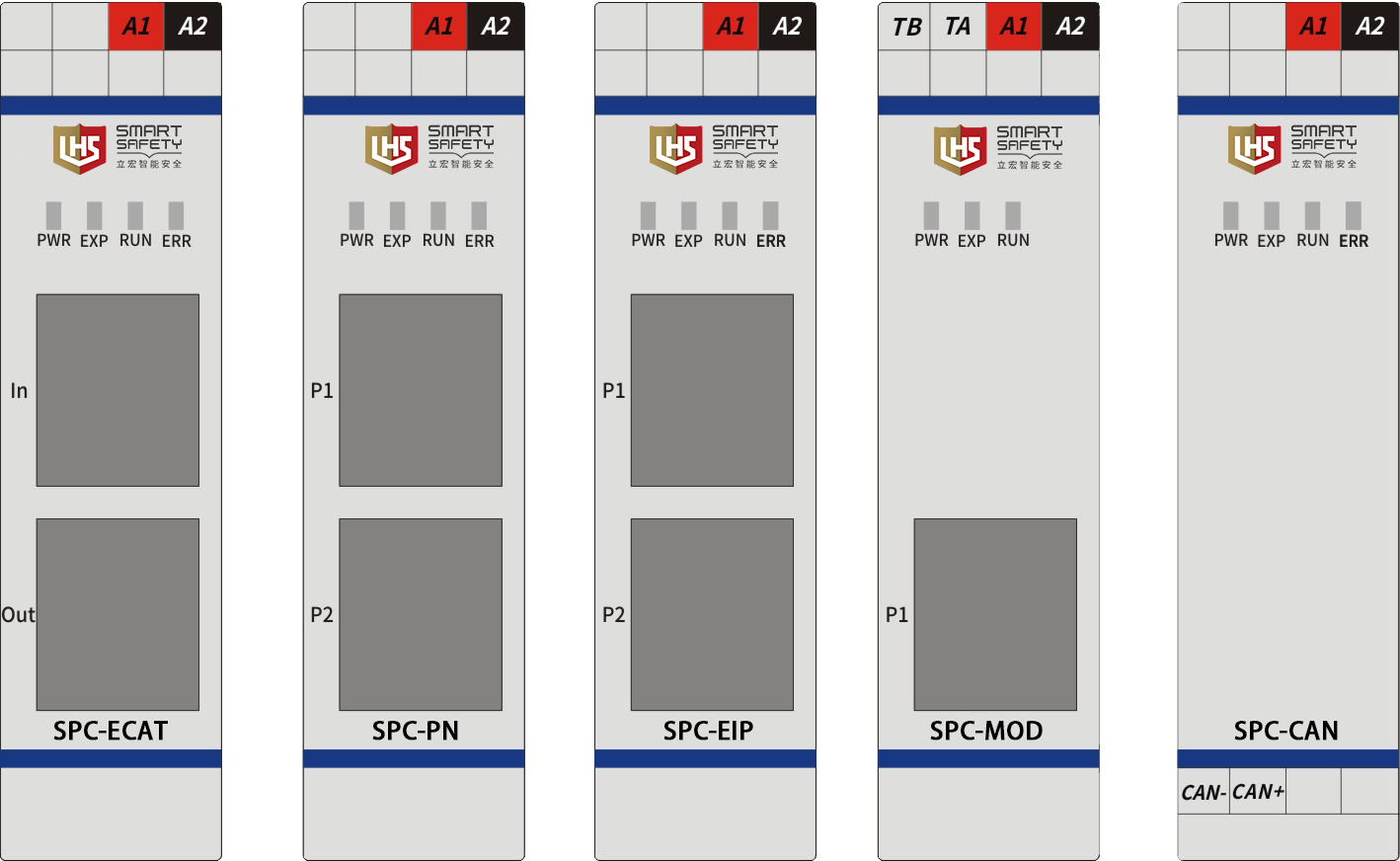

gateway | SPC-PN | PROFINET |
gateway | SPC-MOD | Modbus |
gateway | SPC-EIP | Ethernet/IP |
gateway | SPC-ECAT | Ether CAT |
gateway | SPC-CAN | Canopen |
▊ Technical parameter
model | SPC-WG |
power indicator | off:Module is power-off |
on:Module is power-on | |
Backplane bus indicator | on:Backplane bus communication is normal. |
Blinking:The connection is normal, with some modules offline in the system. | |
Flickering:Gateway module is offline | |
Bus operation indicator | off:No connection established with the master station. |
on:Successful connection with the master station. | |
ERR indicator | off:No error (indicator is off) |
on:System error (indicator is on) | |
LiLink/Act | off:No EtherCAT connection |
on: Connection is normal,no data. | |
Flash: Data is being transmitted |
▊Gateway accessory specification
product name | Product selection | use |
DIN rail bus connector | SPC-TBUS | A bus connector used to connect the housing of electronic modules, one is required for each module. |
Limit switch | SPC-E | A set of two is standard, which is used to fix the module and prevent the module from loosening. |
▊SPC-WG functional block diagram, typical application and outline dimension diagram
| Functional block diagram | DIN rail bus connector SPC-TBUS outline dimension diagram | Limit switch SPC-E outline dimension diagram |
 |
|
|
