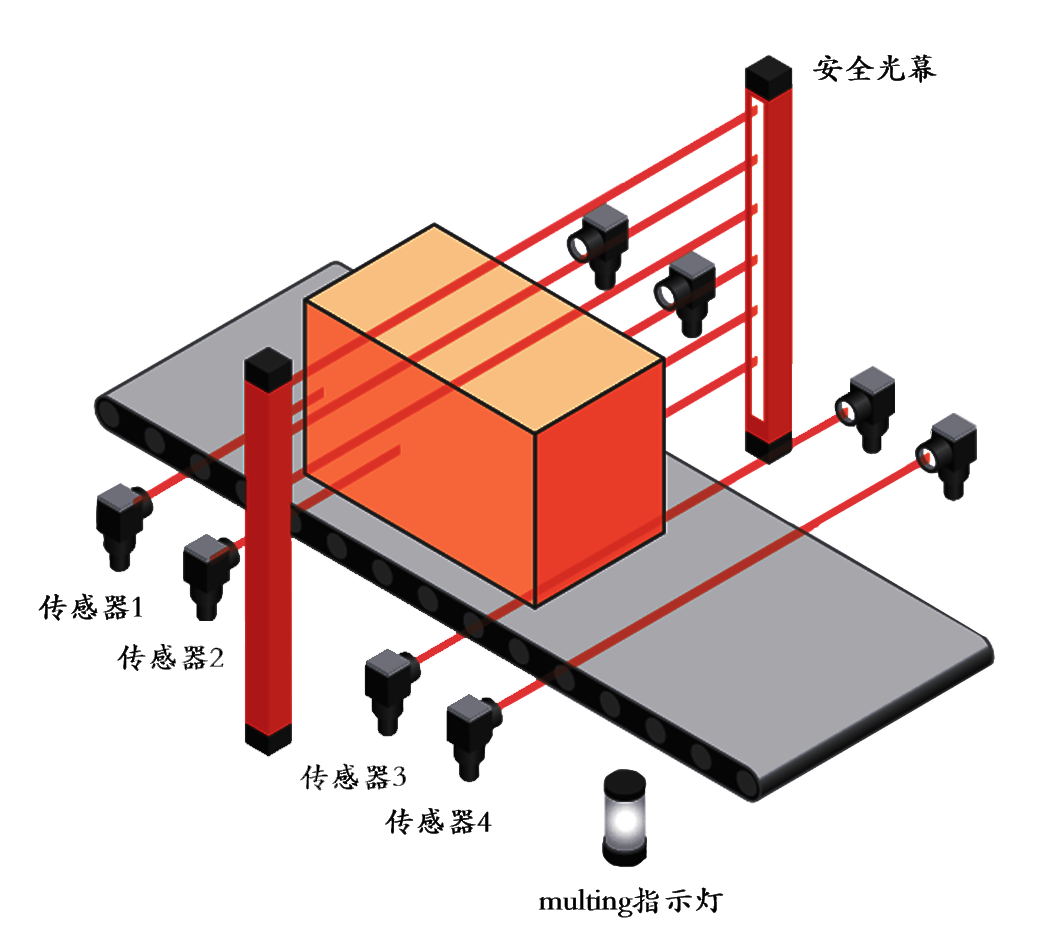

| ▊ | Safety light curtain selection table |
Security level 4 hand | Security level 4 hand | Security level 4 Material inlet and outlet | ||
|  |
| ||
select type mark accurate | model | LA4 | LC4 | LS4A |
security level/phase | Security level 4 GB/T 19436 IEC 61496 | Security level 4 GB/T 19436 IEC 61496 | Security level 4 GB/T 19436 IEC 61496 | |
Security category | Type 4 Cat.4 PLe | Type 4 Cat.4 PLe | Type 4 Cat.4 PLe | |
DCavg | 99% | 99% | 99% | |
CCF | 100 | 100 | 100 | |
MTTFd | ≧40year | ≧40year | ≧40year | |
effective range | 0.5-6 Meters (default) Selectable type | 0-6rice | 0.5-6rice | |
Protective height | 245-1500mm | 140-1420mm | 245-1500mm | |
resolution ratio | 25mm/45mm | 15mm/26mm | 25mm/45mm | |
Beam spacing | 20mm/40mm | 10mm/20mm | 20mm/40mm | |
Response time | <18ms | <18ms | <18ms | |
Power Supply | 24VDC | 24V DC | 24VDC | |
in-out | Safe output | 2個(gè)PNPoutput | 2個(gè)PNPoutput | 2個(gè)PNPoutput |
Reset input | Manual/automatic | Manual/automatic | Manual/automatic | |
| ▊ | Reminders of safety light curtain selection |
·To protect the upper limbs, the resolution of 25mm should be selected (please pay attention to calculating the safe distance).
·Please use a resolution of more than 38mm to protect the whole body from entering (please pay attention to calculating the safe distance).
| ▊ | LA4 safety light curtain |
| Level 4 safety light curtain ·Can protect fingers, palms, arms and other upper and lower limb detection. ·25 resolution protection height from 140mm to 1420mm. ·38 resolution protection height from 150mm to 2130 mm. ·Maximum protection distance is 12m. ·Integrated manual or automatic reset ·External relay feedback input (EDM) ·25 resolution, customizable, adding floating and fixed shielding functions. |
| ▊ | Specifications, models, optical axis spacing, 20mm resolution |
name | model | resolution ratio | Effective protection height | MTTFD (year) | PFHD (1/h) | MTTF（year） | Download product digital model (right-click link to save as) |
safety moncee | LA4-20-0240 | 25 | 140mm | 358 | 6.44E-09 | 65 | |
safety moncee | LA4-20-0280 | 25 | 180mm | 345 | 7.04E-09 | 63 | |
safety moncee | LA4-20-0300 | 25 | 220mm | 332 | 7.04E-09 | 62 | |
| safety moncee | LA4-20-0360 | 25 | 260mm | 321 | 7.04E-09 | 60 |  LA4-20-0360.stp |
safety moncee | LA4-20-0400 | 25 | 300mm | 311 | 7.76E-09 | 59 | |
safety moncee | LA4-20-0440 | 25 | 340mm | 301 | 7.76E-09 | 57 | |
safety moncee | LA4-20-0480 | 25 | 380mm | 292 | 7.76E-09 | 56 | |
safety moncee | LA4-20-0500 | 25 | 420mm | 283 | 8.67E-09 | 55 | |
safety moncee | LA4-20-0560 | 25 | 460mm | 275 | 8.67E-09 | 54 | |
safety moncee | LA4-20-0600 | 25 | 500mm | 267 | 8.67E-09 | 53 | |
safety moncee | LA4-20-0640 | 25 | 540mm | 260 | 8.67E-09 | 52 | |
safety moncee | LA4-20-0680 | 25 | 580mm | 253 | 9.81E-09 | 50 | |
safety moncee | LA4-20-0700 | 25 | 620mm | 246 | 9.81E-09 | 49 | |
safety moncee | LA4-20-0760 | 25 | 660mm | 240 | 9.81E-09 | 49 | |
safety moncee | LA4-20-0800 | 25 | 700mm | 234 | 9.81E-09 | 48 | |
safety moncee | LA4-20-0840 | 25 | 740mm | 228 | 1.08E-08 | 47 | |
safety moncee | LA4-20-0880 | 25 | 780mm | 223 | 1.08E-08 | 46 | |
safety moncee | LA4-20-0900 | 25 | 820mm | 218 | 1.08E-08 | 45 | |
safety moncee | LA4-20-0960 | 25 | 860mm | 213 | 1.08E-08 | 44 | |
safety moncee | LA4-20-1000 | 25 | 900mm | 208 | 1.19E-08 | 43 | |
safety moncee | LA4-20-1040 | 25 | 940mm | 204 | 1.19E-08 | 43 | |
safety moncee | LA4-20-1080 | 25 | 980mm | 199 | 1.19E-08 | 42 | |
safety moncee | LA4-20-1100 | 25 | 1020mm | 195 | 1.19E-08 | 41 | |
| safety moncee | LA4-20-1160 | 25 | 1060mm | 191 | 1.19E-08 | 41 | LA4-20-1160.stp |
safety moncee | LA4-20-1200 | 25 | 1100mm | 188 | 1.33E-08 | 40 | |
safety moncee | LA4-20-1240 | 25 | 1140mm | 184 | 1.33E-08 | 39 | |
safety moncee | LA4-20-1280 | 25 | 1180mm | 180 | 1.33E-08 | 39 | |
| safety moncee | LA4-20-1300 | 25 | 1220mm | 177 | 1.33E-08 | 38 | LA4-20-1300.stp |
safety moncee | LA4-20-1360 | 25 | 1260mm | 174 | 1.33E-08 | 38 | |
safety moncee | LA4-20-1400 | 25 | 1300mm | 171 | 1.33E-08 | 37 | |
safety moncee | LA4-20-1440 | 25 | 1340mm | 168 | 1.50E-08 | 36 | |
safety moncee | LA4-20-1480 | 25 | 1380mm | 165 | 1.50E-08 | 36 | |
safety moncee | LA4-20-1500 | 25 | 1420mm | 162 | 1.50E-08 | 36 | |
explain | The detection distance of the models listed in the table defaults to Type A: 0~ 6m, and other detection distances are selected as follows.:LA4-20-口口口口(height)-口(B、D、E):among，Btype:0~12m，Dtype:0~20m;Etype:0~40m;Etype:0~30m; | ||||||
| ▊ | Specifications, models, optical axis spacing, 30mm resolution |
| name | model | resolution ratio | Effective protection height | MTTFD(year) | PFHD(1/h) | MTTF（year） |
safety moncee | LA4-30-030 | 38 | 150mm | 372 | 6.44E-09 | 67 |
safety moncee | LA4-30-0240 | 38 | 210mm | 358 | 6.44E-09 | 65 |
safety moncee | LA4-30-0360 | 38 | 270mm | 345 | 7.04E-09 | 63 |
safety moncee | LA4-30-0420 | 38 | 330mm | 333 | 7.04E-09 | 62 |
safety moncee | LA4-30-0480 | 38 | 390mm | 321 | 7.04E-09 | 60 |
| safety moncee | LA4-30-0540 | 38 | 450mm | 311 | 7.76E-09 | 59 |
| safety moncee | LA4-30-0600 | 38 | 510mm | 301 | 7.76E-09 | 57 |
safety moncee | LA4-30-0660 | 38 | 570mm | 292 | 7.76E-09 | 56 |
safety moncee | LA4-30-0720 | 38 | 630mm | 283 | 8.67E-09 | 55 |
safety moncee | LA4-30-0780 | 38 | 690mm | 275 | 8.67E-09 | 54 |
safety moncee | LA4-30-0840 | 38 | 750mm | 267 | 8.67E-09 | 53 |
safety moncee | LA4-30-0900 | 38 | 810mm | 260 | 8.67E-09 | 52 |
safety moncee | LA4-30-0960 | 38 | 870mm | 253 | 9.81E-09 | 50 |
safety moncee | LA4-30-1020 | 38 | 930mm | 246 | 9.81E-09 | 49 |
safety moncee | LA4-30-1080 | 38 | 990mm | 240 | 9.81E-09 | 49 |
safety moncee | LA4-30-1140 | 38 | 1050mm | 234 | 9.81E-09 | 48 |
safety moncee | LA4-30-1200 | 38 | 1110mm | 228 | 1.08E-08 | 47 |
safety moncee | LA4-30-1260 | 38 | 1170mm | 223 | 1.08E-08 | 46 |
safety moncee | LA4-30-1320 | 38 | 1230mm | 218 | 1.08E-08 | 45 |
safety moncee | LA4-30-1380 | 38 | 1290mm | 213 | 1.08E-08 | 44 |
safety moncee | LA4-30-1440 | 38 | 1350mm | 208 | 1.19E-08 | 43 |
safety moncee | LA4-30-1500 | 38 | 1410mm | 204 | 1.19E-08 | 43 |
safety moncee | LA4-30-1560 | 38 | 1470mm | 199 | 1.19E-08 | 42 |
safety moncee | LA4-30-1620 | 38 | 1530mm | 195 | 1.19E-08 | 41 |
safety moncee | LA4-30-1680 | 38 | 1590mm | 191 | 1.19E-08 | 41 |
safety moncee | LA4-30-1740 | 38 | 1650mm | 188 | 1.33E-08 | 40 |
safety moncee | LA4-30-1800 | 38 | 1710mm | 184 | 1.33E-08 | 39 |
safety moncee | LA4-30-1860 | 38 | 1770mm | 180 | 1.33E-08 | 39 |
safety moncee | LA4-30-1920 | 38 | 1830mm | 177 | 1.33E-08 | 38 |
safety moncee | LA4-30-1980 | 38 | 1890mm | 174 | 1.33E-08 | 38 |
safety moncee | LA4-30-2040 | 38 | 1950mm | 171 | 1.33E-08 | 37 |
safety moncee | LA4-30-2100 | 38 | 2010mm | 168 | 1.50E-08 | 36 |
safety moncee | LA4-30-2160 | 38 | 2070mm | 165 | 1.50E-08 | 36 |
safety moncee | LA4-30-2220 | 38 | 2130mm | 162 | 1.50E-08 | 35 |
| explain | The detection distance of the models listed in the table defaults to Type A: 0~6m, and other detection distances are selected as follows.:LA4-30-口口口口(height)口(B、D、E);among，Btype:0~12m，Dtype:0~20m;Etype:0~40m;Etype:0~30m; | |||||
| ▊ | technical parameter |
executive standard | GB/T 19436.1;GB/T 19436.2;GB 4583-2007;IEC 61496-1;IEC 61496-2 | ||
Security category | |||
security level/phase | Type 4 Cat.4 ple | ||
DCavg | 99% | ||
CCF | 100 | ||
MTTFD/PFHD | (See the specification sheet of safety grating in the detailed manual) | ||
Optical characteristics | |||
Detection light source | Infrared LED (center wavelength 940mm) | ||
Detection height | Optical axis spacing x (number of beams -1) | ||
EAA | Meet the requirements of IEC61496-2. When the detection distance is more than 3m, EAA is less than 2.5. | ||
Environmental characteristics | |||
ambient temperature | work | -10℃~55℃（No frosting and fog condensation） | |
store | -40℃~70℃ | ||
ambient humidity | work | 36%RH~85%RH | |
store | 36%RH~95%RH | ||
Anti-light interference | Incandescent light source | 3000 Lux | |
Fluorescent light source | 3000 Lux | ||
Solar light source | 10000 Lux | ||
EMC | EMS | Meet the requirements of GB/Tl9436-l and GB4584-2007 for four-level security grating. | |
EMI | Meet the requirements of EN61326-l and EN55011 for electromagnetic radiation of industrial sites. | ||
Anti-vibration ability | Frequency 10Hz~55Hz; Amplitude: 0.35 0.05mm; Scanning times: three axes, 20 times per axis. | ||
Impact resistance | Acceleration 10g; Pulse duration: 16 ms; Collision times: three axes, each axis is 1000 10 times. | ||
the protection grades | IP65 | ||
outline dimension | 52ⅹ36ⅹJmm (j is the transmitter/receiver length) | ||
Electrical characteristics | |||
Power supply voltage | DC24V±10% | ||
Consumption current | launcher | ≤(300mA） | |
receiver | ≤lOOmA (non-loaded） | ||
Response time | ＜18ms | ||
Output characteristics | PNP output | The output X2 of NPN transistor (ON when the light is turned on), the load current is less than 300mA, and the residual voltage is less than 3V (excluding the influence of wire extension). | |
PNP output | The output X2 of PNP transistor (ON when the light is turned on), the load current is less than 300mA, and the residual voltage is less than 3V (excluding the influence of the lead delay PNP output length). | ||
| ▊ | safety control |
·Dual channel safety loop input ·A variety of configurable safety control modules, supporting a variety of safety component inputs. ·Multi-channel safe output, meeting the output category standard. ·Configuration software can be used to set safety control logic to meet various field application requirements. ·security certificate：PLe | ||
SR103 | SM302 | SM602 |
|
|
|
product name | model | Safety input | output |
safety relay | SR103系列 | 1Group security product | 3NO+1NC |
Safety controller | SM302系列 | 3Group security product | 2NO |
Safety controller | SM602系列 | 6Group security product | 2NO+4SO |
explain | Input product Emergency stop button, safety door lock, two-hand button, safety grating, safety pad, reset, etc. | ||
